What is ArCADia LT 10?
     ArCADia LT is a fully functional, easy-to-operate and intuitive CAD program that allows object-oriented creation of 2D building documentation and saving files to the 2013 DWG format. It is a basic graphic design tool for the construction industry in its broadest sense.

Basic tools of the ArCADia BIM system:

  • This ArCADia tool enables the user to compare designs created in the ArCADia BIM system and to find the differences between them.

  • This tool allows to include multiple designs of various installations in one document.

  • This tool allows to include multiple designs of various installations in one document.

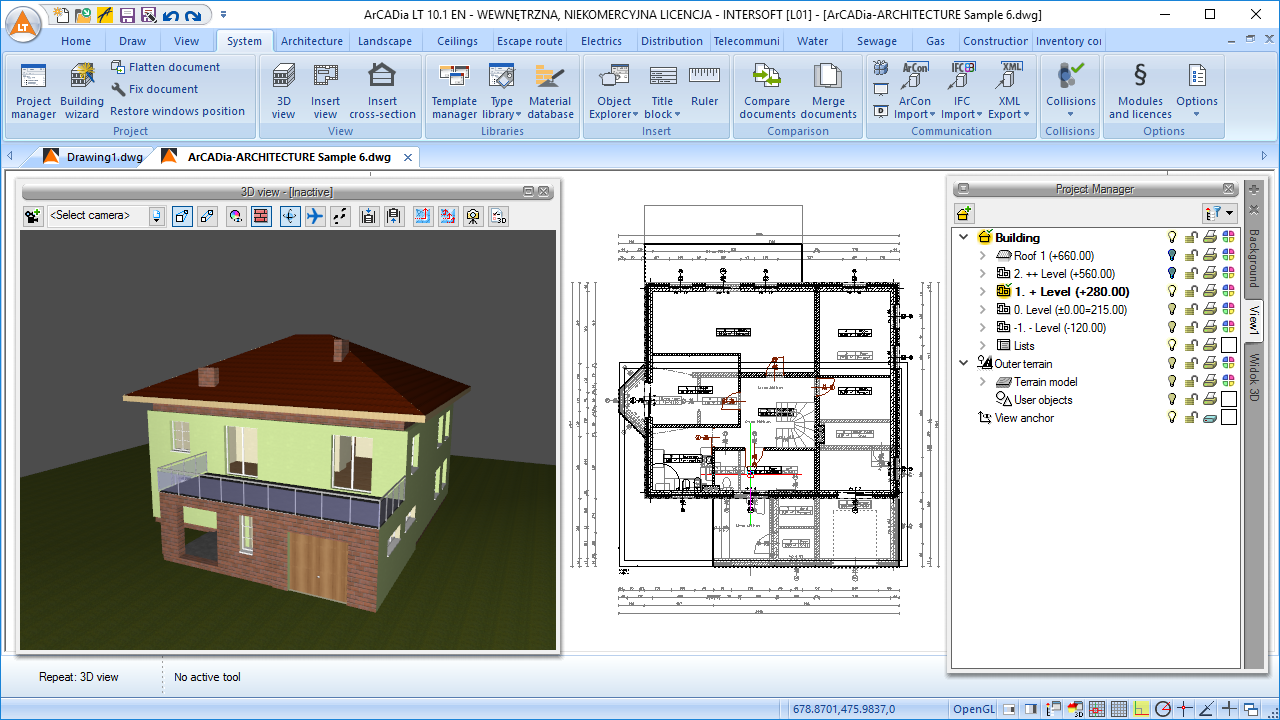

  • The management of views and displayed information using the comprehensive Project Manager tree.

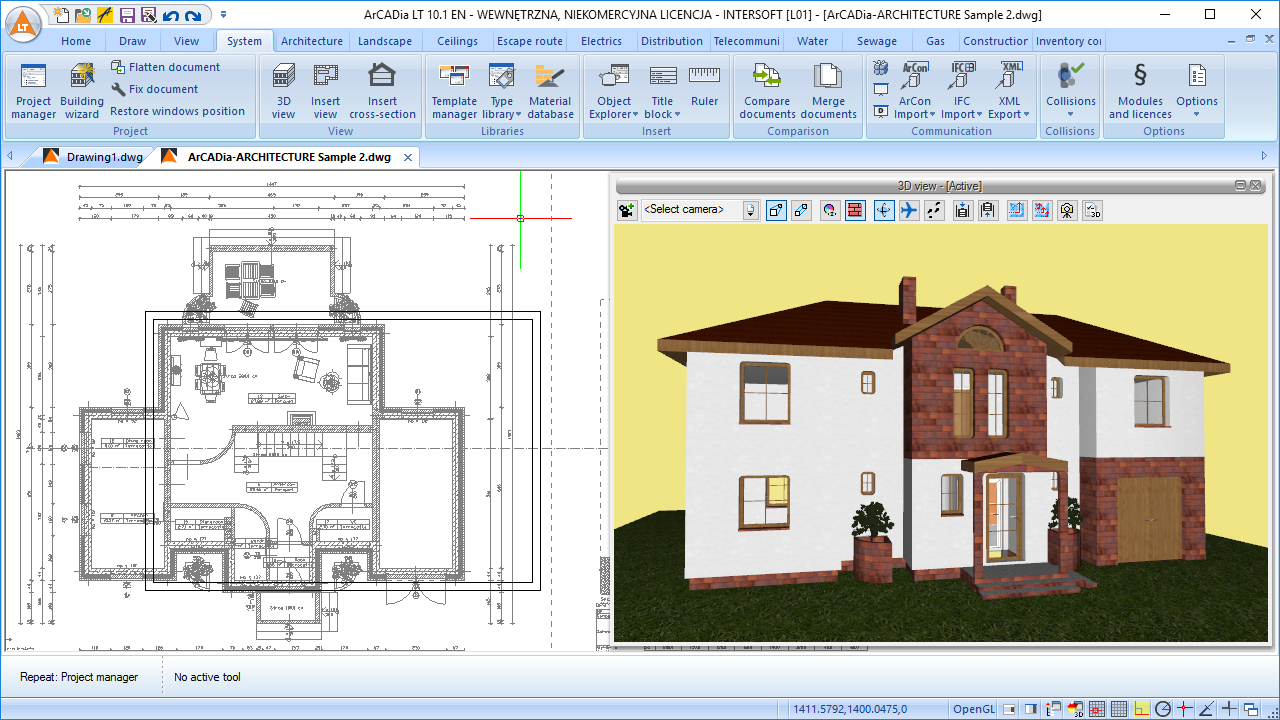

  • The automatically created 3D view is available in a separate window to allow a presentation of the entire body of the building or e.g. a part of a level.

  • Elements like walls, windows, doors, etc., are now inserted with the use of the intelligent tracking function.

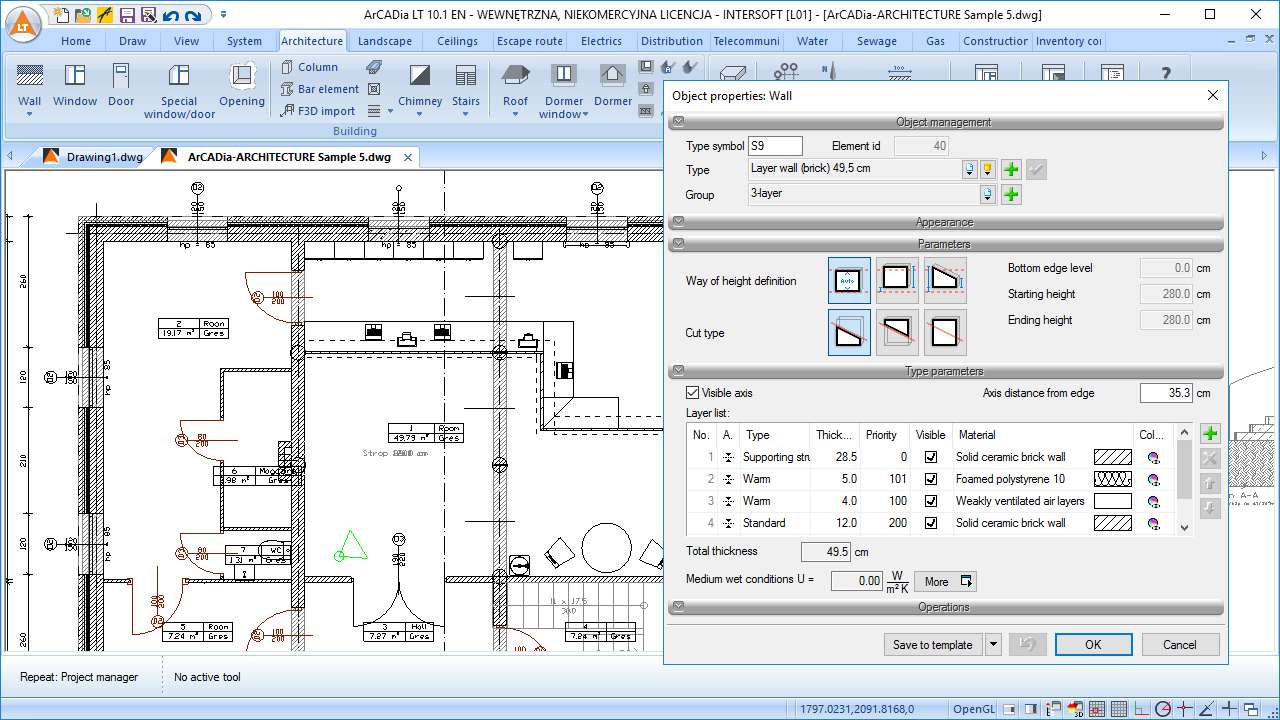

  • Selecting walls from defined types or setting of any specified composite walls.
  • A built-in catalogue of building materials that is based on the PN-EN 6946 and PN-EN 12524 standards.
  • Inserting virtual walls that are invisible in the 3D preview or cross-section. They divide the room space in order to distinguish an open-space function, for example.
  • Heat transfer coefficient is calculated automatically on the base of the materials selected for the space dividers (walls, ceilings, roof).

  • Inserting windows and doors by means of parameters from the program library and creating user-defined windows and doors.
  • The possibility to define the windowsill protrusion inside and outside a room, as well as its thickness.
  • The possibility to switch off a windowsill.

  • Automatic insertion of floors (according to a level outline).

  • The module is used to prepare drawings for structural systems of Teriva ceilings. Drawings include all the main elements of the system: ceiling beams, transverse beams, hidden beams, trimmers, KZE and KWE ring fittings, KZN and KWN lintel elements, support grids and additionally all necessary lists of materials covering listed elements, supplemented with the reinforced steel and monolithic concrete required to create a ceiling.
  • Automatic and manual calculation of all Teriva ceilings (4.0/1; 4.0/2; 4.0/3; 6.0; 8.0) in the ceiling areas of any shape.
  • Automatic distribution of beams, transverse beams and ring beams on internal and external walls and on main beams.
  • Automatic setting of a system of trimmers for openings and beams for partition walls.
  • Automatic solving of a side ceiling access to a wall.
  • Automatic calculation and setting of the required plane and offset grids.

  • Automatic creation of rooms from closed outlines of walls and virtual walls.
  • Temperatures and lighting requirements are automatically assigned to rooms, depending on their names.
  • The possibility to change the graphic imaging of a room in the view, e.g. by filling or colour.

  • Inserting binding joists, including reinforcements defined both for bars and stirrups.

  • Insertion of columns of rectangular and elliptical cross-section.

  • The insertion of single chimney openings or chimney shafts (groups of chimneys with a set number of columns and lines).
  • The possibility to insert chimney ducts or mark the outlet of existing chimneys.
  • New chimney profiles.

  • Defining one- and multi-flight stairs and winder stairs in any plan.
  • New types of stairs: monolithic with treads or see-through with stringers. The possibility to choose the type and elements of a step.

  • Automatic creation of a terrain model on the basis of spot heights from digital DWG maps.
  • Insertion of a terrain plane using spot heights or lines.
  • The insertion of objects that simulate elements of a network or objects existing on the terrain to check for collisions in the design.

  • Inserting and modifying camera settings, from the point of view of an observer, which can be used to view a design or to save a view.
  • The current scene can be saved to a file in BMP, JPG or PNG formats.


  • The possibility to insert a grid of modular axes, including complete editing options.

  • Creating user-defined title blocks in the dialogue window or using graphic field editing options.
  • The insertion of automatic (taken from a design) or user-defined texts into a title block.
  • Saving title blocks to the project or program library.

  • Saving user-defined settings of elements (markers, fonts, default types, heights, etc.).
  • The Type Manager is used to manage types used in a document and existing in the global library. From now on, it can be saved in templates which object types will be used.

  • Groups of elements of various types can be saved into a single type. All connections, sizes of elements and other individual element parameters can be saved into a single layout that can be used in future projects. The layout can be further divided to modify individual group elements.

  • A built-in type library for all elements of each module.
  • Library modification during the design by saving the created types.
  • Library modification in the library window by adding, editing and deleting types from the global/user’s library or the project library.

  • The arbitrary linear and angular dimensioning of a design.

  • Automatically created listings of rooms for each level.
  • Automatically created listings of windows and doors, including symbols.
  • Listings can be exported to an RTF file and to a CSV file (spreadsheet).
  • Communicating with other systems.
  • Projects can be exported in the XML format.
  • The possibility to edit and correct listings before they are saved. Printing listings and adding e.g. a logo.
  • A new word processor called ArCADia-TEXT is available. It is launched when exporting to an RTF file.
  • ArCADia-TEXT saves to the following formats: RTF, DOC, DOCX, TXT and PDF.

  • An integrated library of elements allows a drawings to be detailed with the required architectural 2D symbols.
  • A library of 3D objects allows created interiors to be arranged.
  • The object catalogue can be extended with new libraries.
  • User-defined objects created with 2D elements can be saved in the program library.
  • 2D and 3D objects can be inserted with an angle with respect to the Z-axis given during insertion.
  • The possibility to rotate objects about the X and Y axes and to change a symbol in a view when necessary.

COLLISIONS (automatic detection of collisions and intersections between elements of the ArCADia BIM system):
  • Collisions of any elements in the ArCADia BIM system can be freely listed.
  • Clear lists of collisions in the project and point indicators in the plan and 3D view are available.

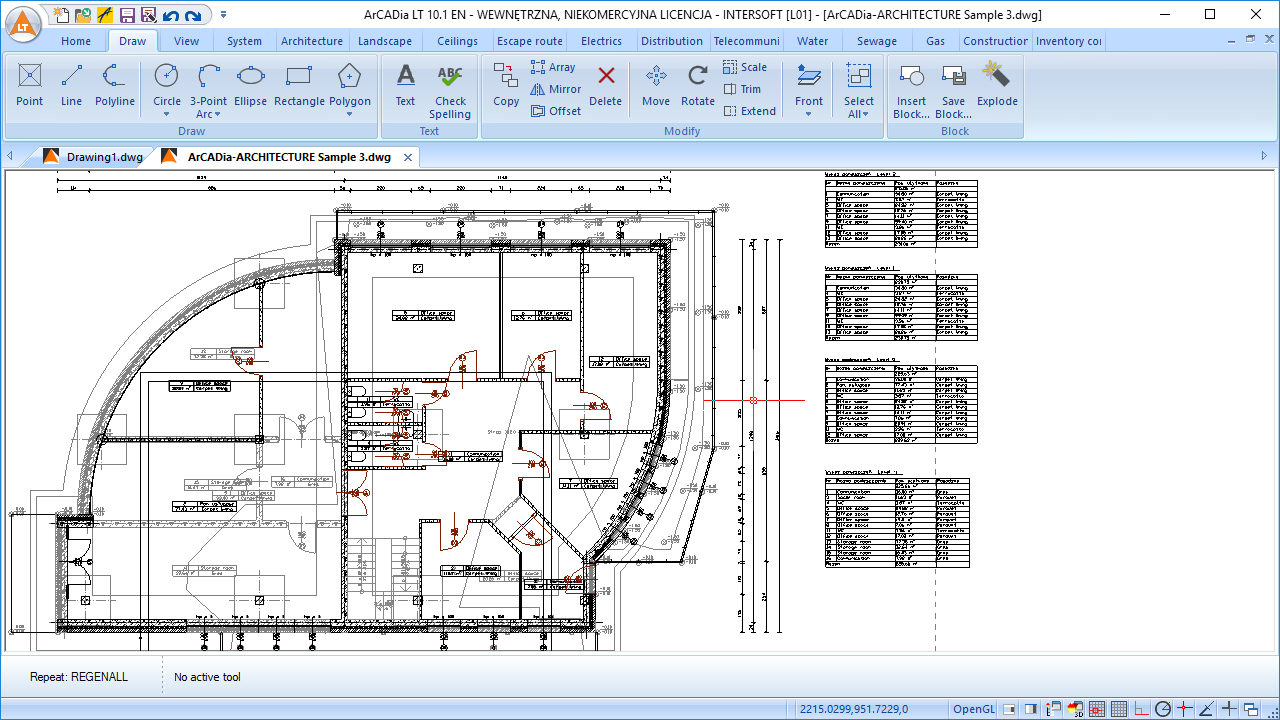

     ArCADia LT enables the user to draw and edit 2D documents, load raster images (e.g. geodetic maps), describe drawings using TrueType or SHX fonts, insert blocks from other documents, as well as print the documentation in an intuitive way.

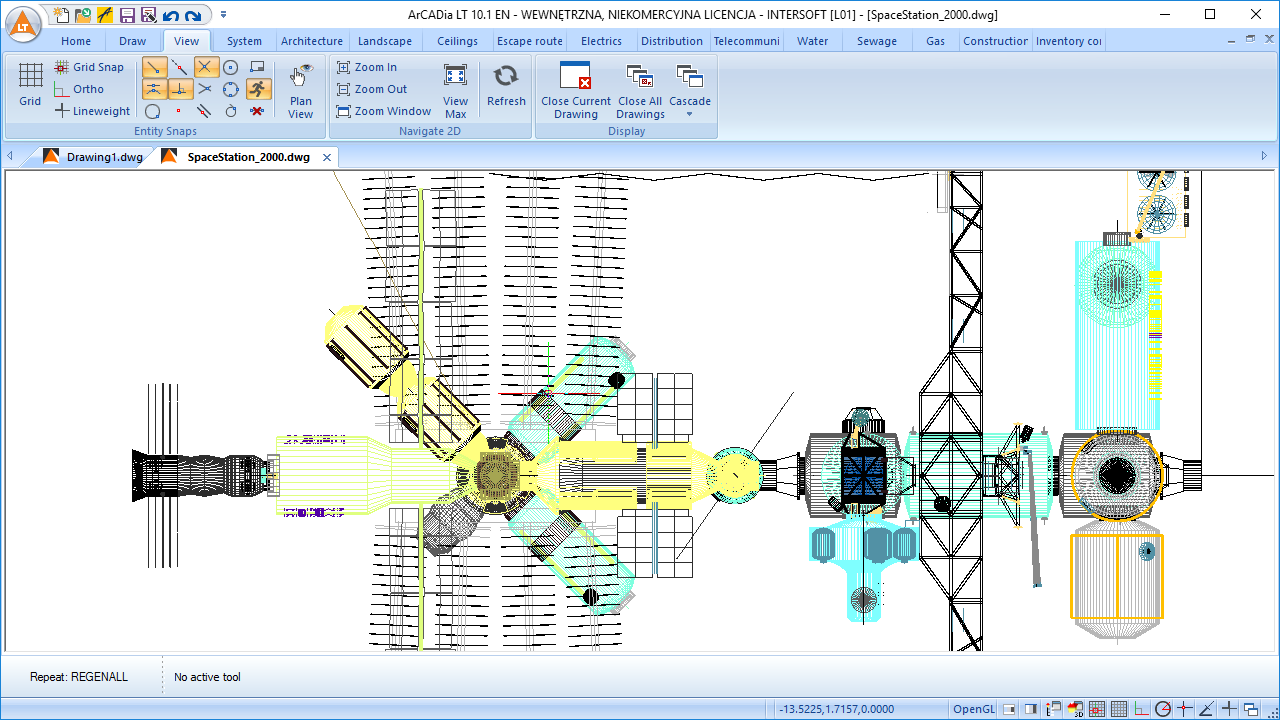

     The intuitive interface enables to work in coordinates or to insert data using lengths and angles. The command bar changes in various stages of the drawing and modification process and it offers the auxiliary options that are the most useful at the moment. Selecting functions that are the most important for drawing has enabled to implement options in an orderly and simple way. Additionally, the most important tools (switching on and off the grid, Ortho, entity snaps, Project Manager and the 3D view window, interface theme modifications) have been put at the bottom of the screen, which makes both the communication with the program and the work itself easier and faster.

  • Drawing any elements using lines, polylines, circles, arcs, ellipses, regular polygons and rectangles.
  • Editing drawing elements by means of the following tools: Move, Copy, Scale, Rotate, Mirror, Array, Trim, Explode and Offset. The user selects the item to be changed and then indicates the function to be performed.
  • Closed outlines: circles, polygons and rectangles can be freely hatched using a pattern indicated in the element properties window.
  • Creating and saving blocks – groups of elements that form a given symbol. A block is saved in a new document and it can be inserted both in the drawing it was created in and in any other drawing. Each time a block is inserted, the program asks about the possible scaling and rotating it.
  • The description of drawings is created using a multi-line text with SHX and TrueType fonts. The text is inserted in an additional window that is displayed after the options are enabled. Its size, a font type, justification and other similar elements are defined in the Multiline Text window.
  • It is possible to insert bitmap base maps in popular formats such as JPG, BMP, TIF and PNG. The following tools are available here: scale, trim, change lightness, contrast and fade.

  • The print sheet is put in the drawing area by default. In a clear and simple way, it shows what the printout will look like.
  • The size of the print sheet and the scale of the printout can be defined in an intuitive way.
  • Program options are expanded by the basic functions of the ArCADia BIM system, or smart objects creating models of buildings that are constructed of the options of the consecutive industry-specific modules.
ArCADiasoft is a member of the ITC. Some IntelliCAD 8 source codes have been used in the program.
  • Pentium-class computer (Intel Core i5 recommended)
  • 2 GB RAM minimum (8 GB recommended)
  • About 3 GB free hard disc space for installation
  • A graphics card compatible with DirectX 9.0 (a 1GB RAM card recommended)
  • OS: Windows 10 or Windows 8 or Windows 7
